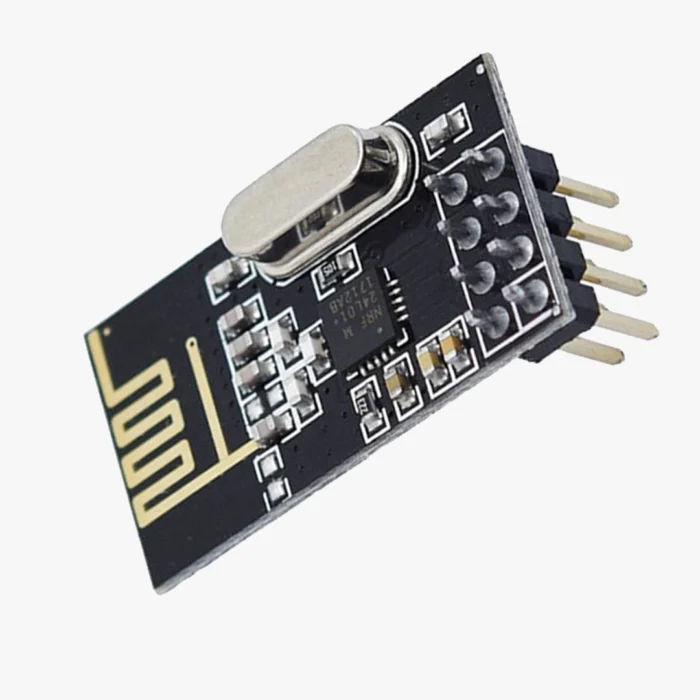

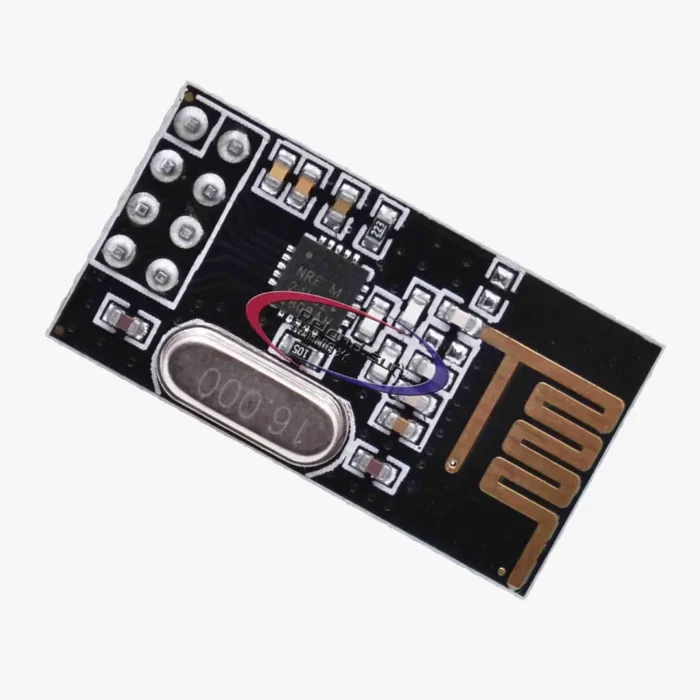

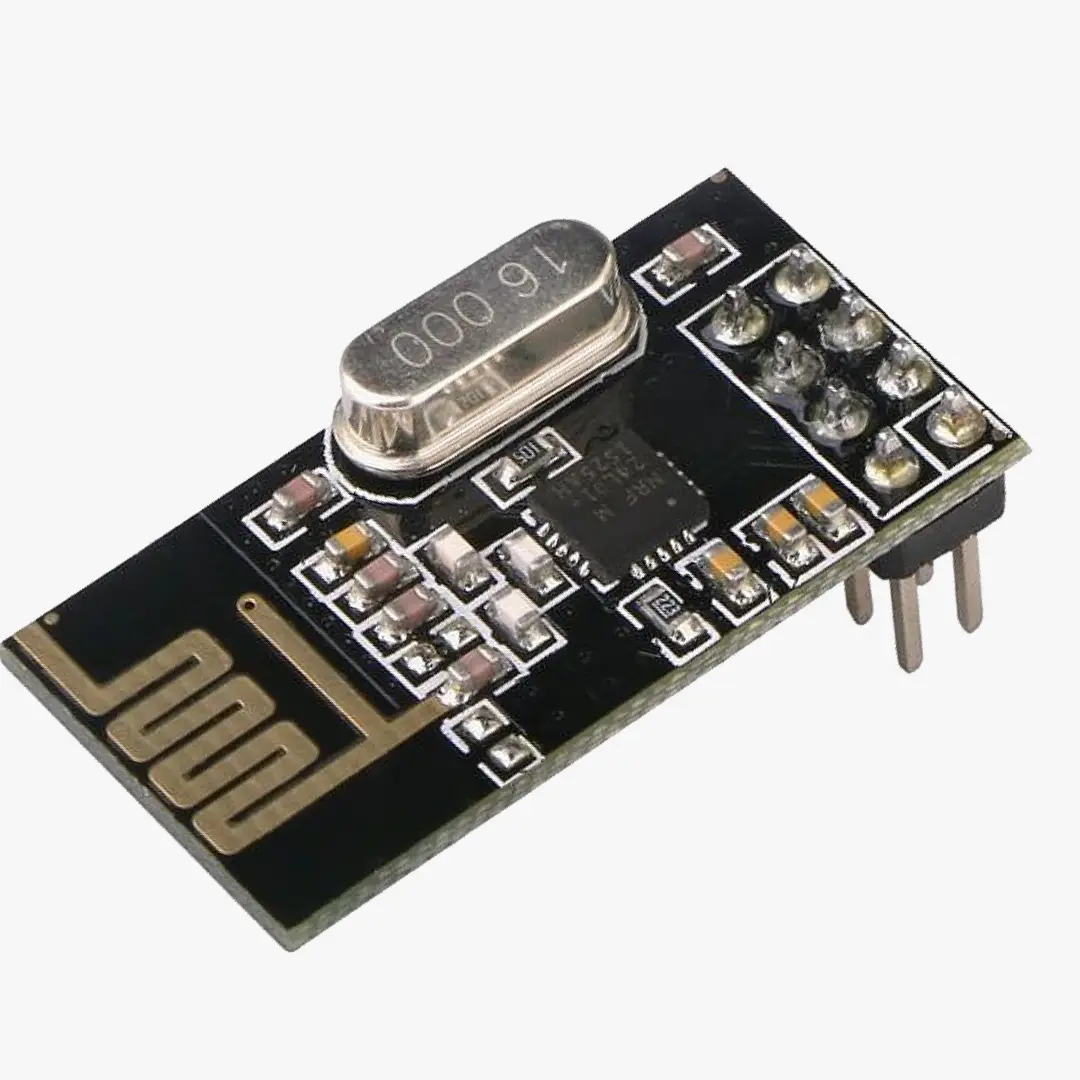

Name: NRF24L01 Wireless Module – High-Speed 2.4GHz Communication for IoT and Embedded Systems (Pack of 2)
SKU: 16097
Availability: InStock

NRF24L01 Wireless Module – High-Speed 2.4GHz Communication for IoT and Embedded Systems (Pack of 2)

Description

Reliable 2.4GHz Wireless Communication: Allows without interference fast, high-speed data transfer.
Compact and Lightweight: Can easily be used with operation IoT projects, robotics, and control systems without wires.
Low Power Consumption: Suitable for devices that are battery-powered and portable.
Wide Compatibility: This can be efficiently used with Arduino, ESP32, Raspberry Pi, and other microcontrollers.
Multi-Channel Support: Supports up to 125 channels for interference-free communication.

Specifications

Specification	Details
Frequency	2.4GHz ISM band
Operating Voltage	1.9V to 3.6V (3.3V recommended)
Communication Protocol	SPI
Data Rate	250 kbps, 1 Mbps, 2 Mbps
Range	Up to 100 meters (open space) with onboard PCB antenna Up to 1000 meters with an external PA/LNA module
Channels	125 selectable channels
Power Consumption	Transmission: 11.3mA at 0dBm Standby: 22µA
Dimensions	15 x 29 mm

Features

Supports several devices in a single network with a maximum of 6 data pipes.
Fixed CRC (Cyclic Redundancy Check) for data accountability to enhance data integrity.
Power was down and standby modes were important for further energy efficiency.
Working with RF24 libraries made programming and joining easy.
