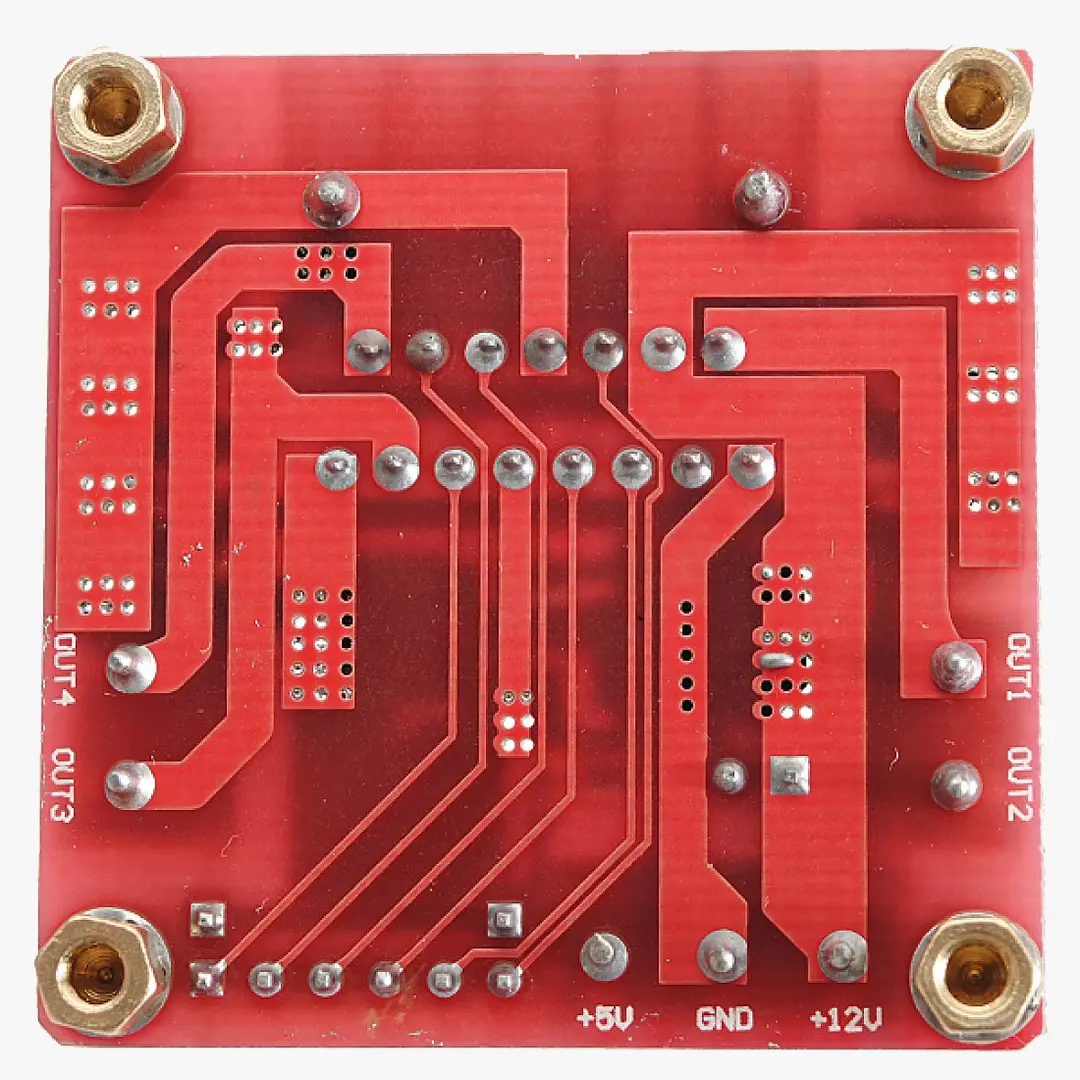

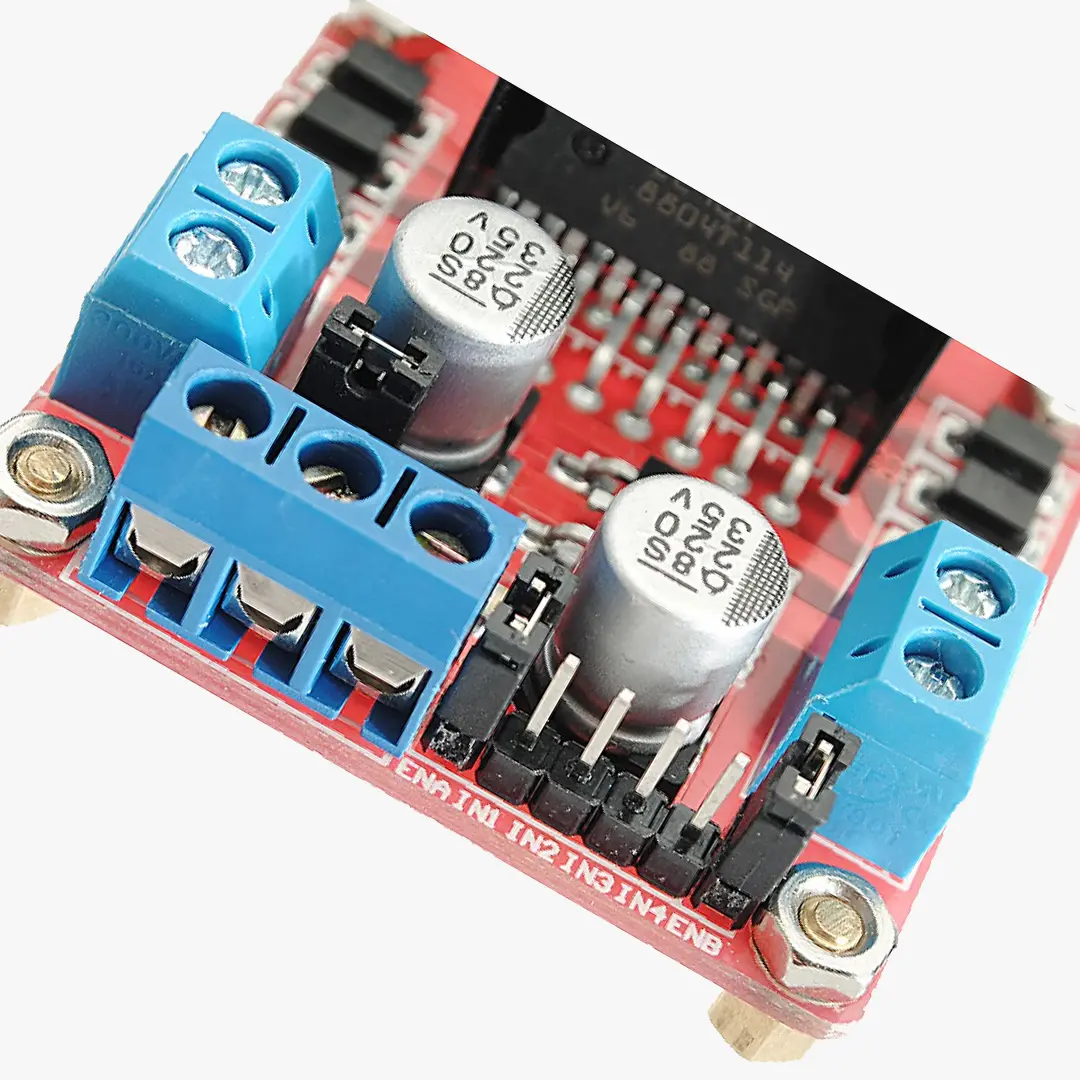

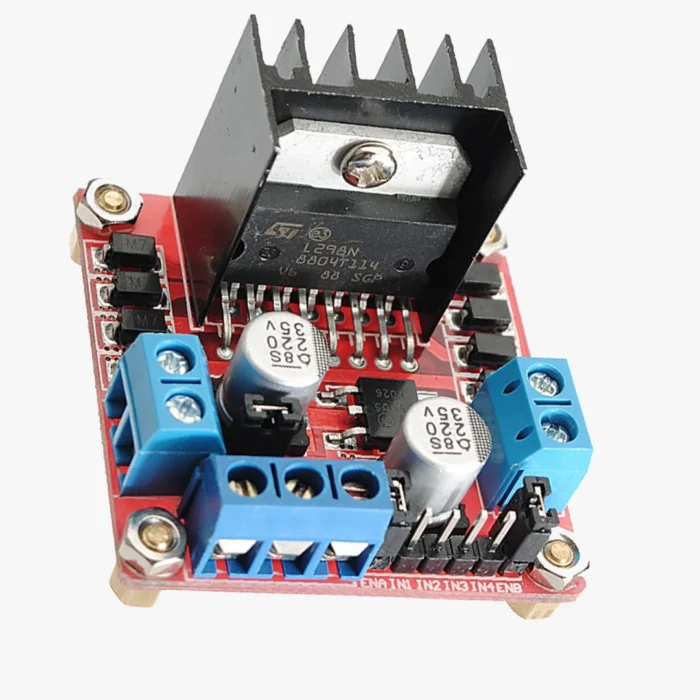

Name: L298N Motor Driver Module – High-Power Dual Motor Control Solution
SKU: 16213
Availability: InStock

L298N Motor Driver Module – High-Power Dual Motor Control Solution

Description

Dual H-Bridge Design: Controls the speed and direction of two DC motors or one stepper motor simultaneously.

High Power Capacity: Premium quality, medium to high power motors can be supported due to higher voltage and current efficiency.

Wide Compatibility: Interfacing with Arduino, Raspberry Pi, ESP32 and other microcontrollers is possible.

Integrated Heat Sink: Facilitated stable performance under heavy loads through effective heat dissipation.
Protection Features: Diodes used for back-EMF protection and thermal shutdown.

Specifications

Specification	Details
IC	Dual H-Bridge Motor Driver IC L298N
Motor Channels	Two (2) - Independent control
Operating Voltage	Logic: 5V Motor Supply: DC 5V - 35V
Output Current	Continuous: 2A/ch Peak: 3A/ch

Features

Motors requiring upto 35V and 2A current can be driven.
Logic circuitry powered by the IC's built in 5V regulator.
Both unidirectional and bidirectional motors are supported with PWM speed control.
Integration of one or more motors into robotic and motorized projects is easy.
Wiring is secured through screw terminals.
The Package Contains:
One L298N Motor Driver Module
(Optional) Jumpers for Simple Adjustments
