- Distance Measurement With Precision: It applies ultrasonic distance measuring with high accuracy, ideal for searching and avoiding collisions with objects.
- Wide Effective Distance: Operates from a minimum distance which is 2 cm up to a maximum of 4m with a 0.3cm resolution.
- It is Handy and Not Heavy at All which makes it easy to be used in robotics, IoT, and even DIY works.
- Beginner Users can connect and use friendly microcontroller interfaces such as Arduino, ESP32, Raspberry Pi, etc.
- The module works well in both indoor and outdoor conditions and maintains its consistency and effectiveness in different conditions.
-77%
ESP32-CAM Programming Board – Only Development Base for ESP32 Camera Module
Original price was: ₹500.00.₹109.00Current price is: ₹109.00.
MQ-2 Gas Sensor Module – Air Quality Monitoring and Gas Detection
Original price was: ₹595.00.₹249.00Current price is: ₹249.00.

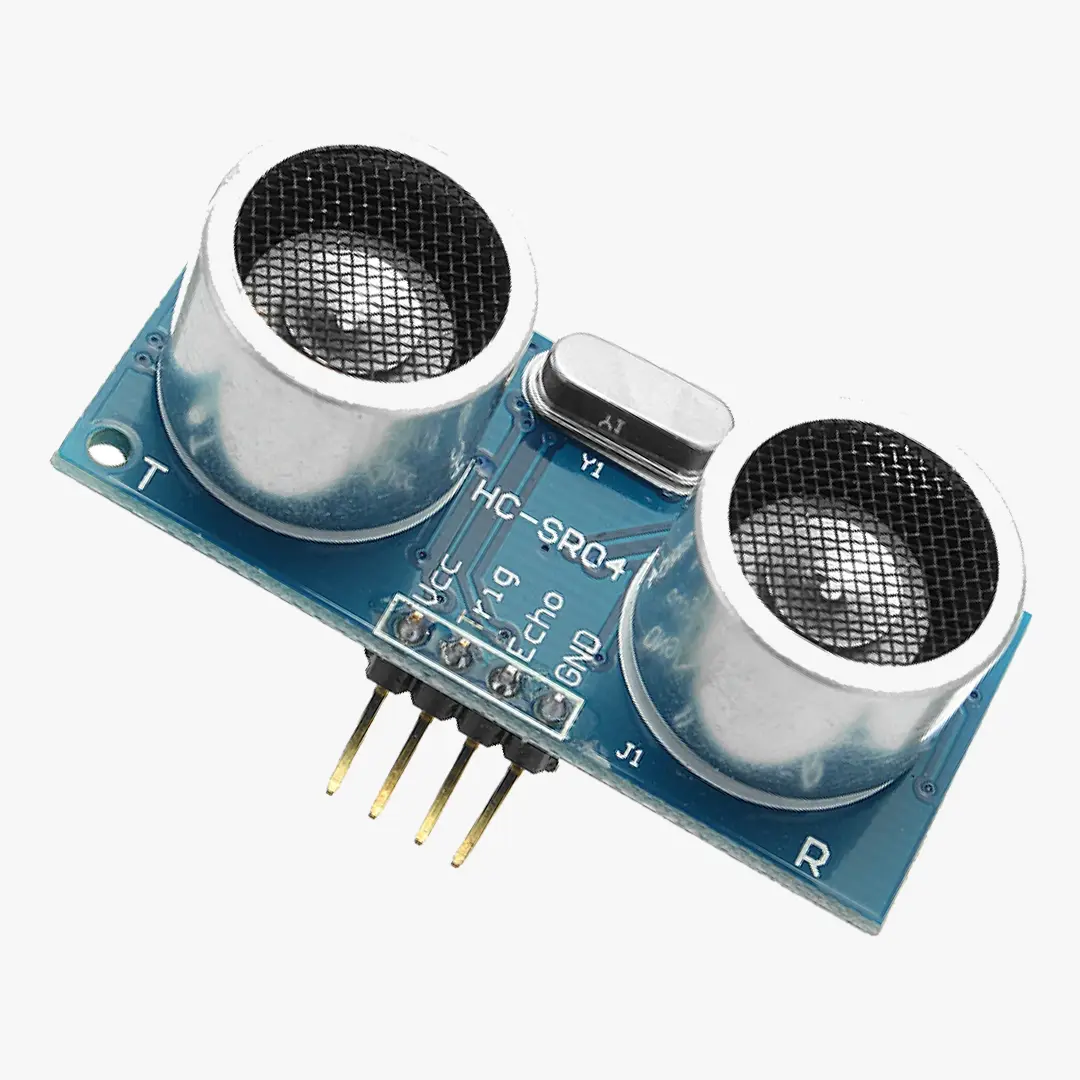

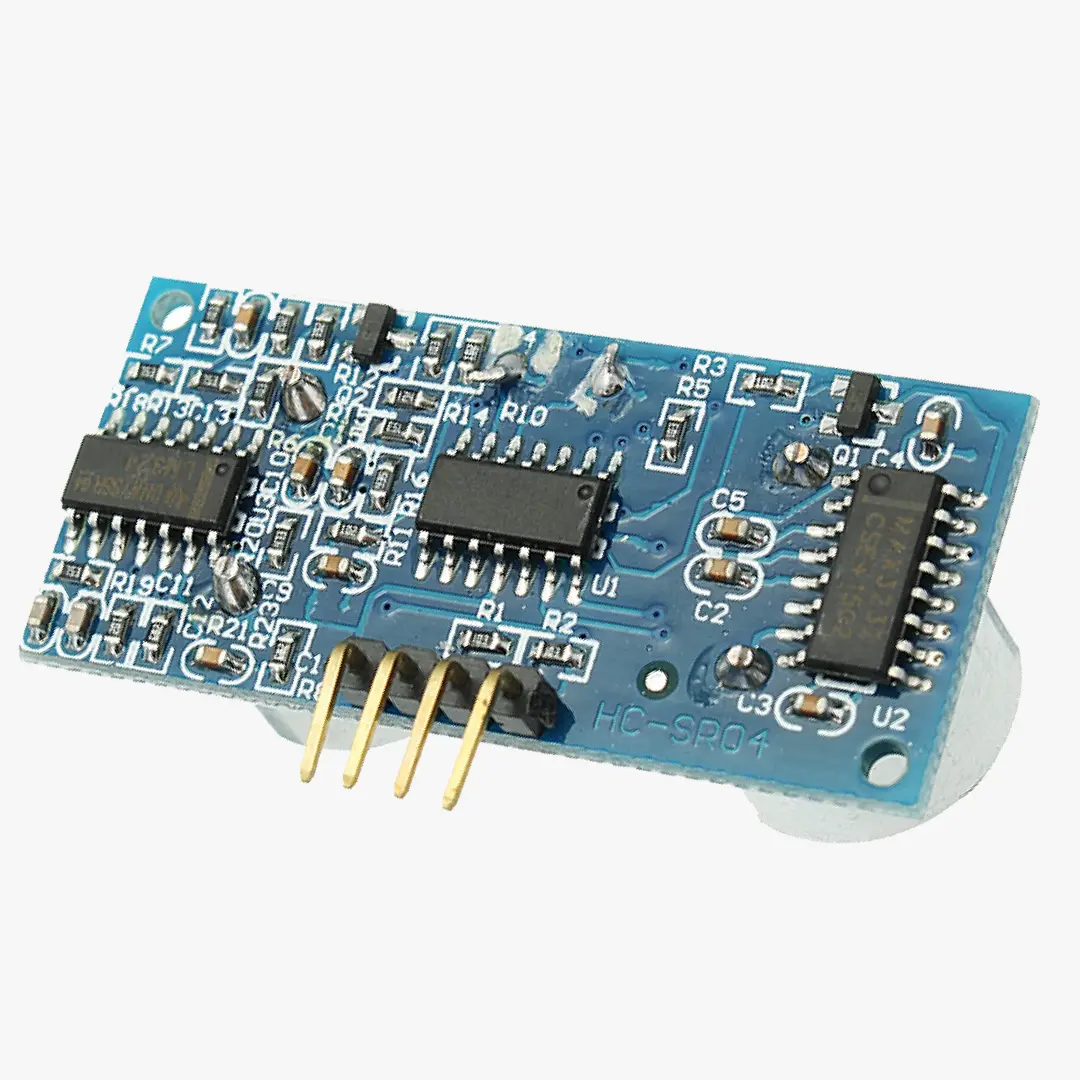

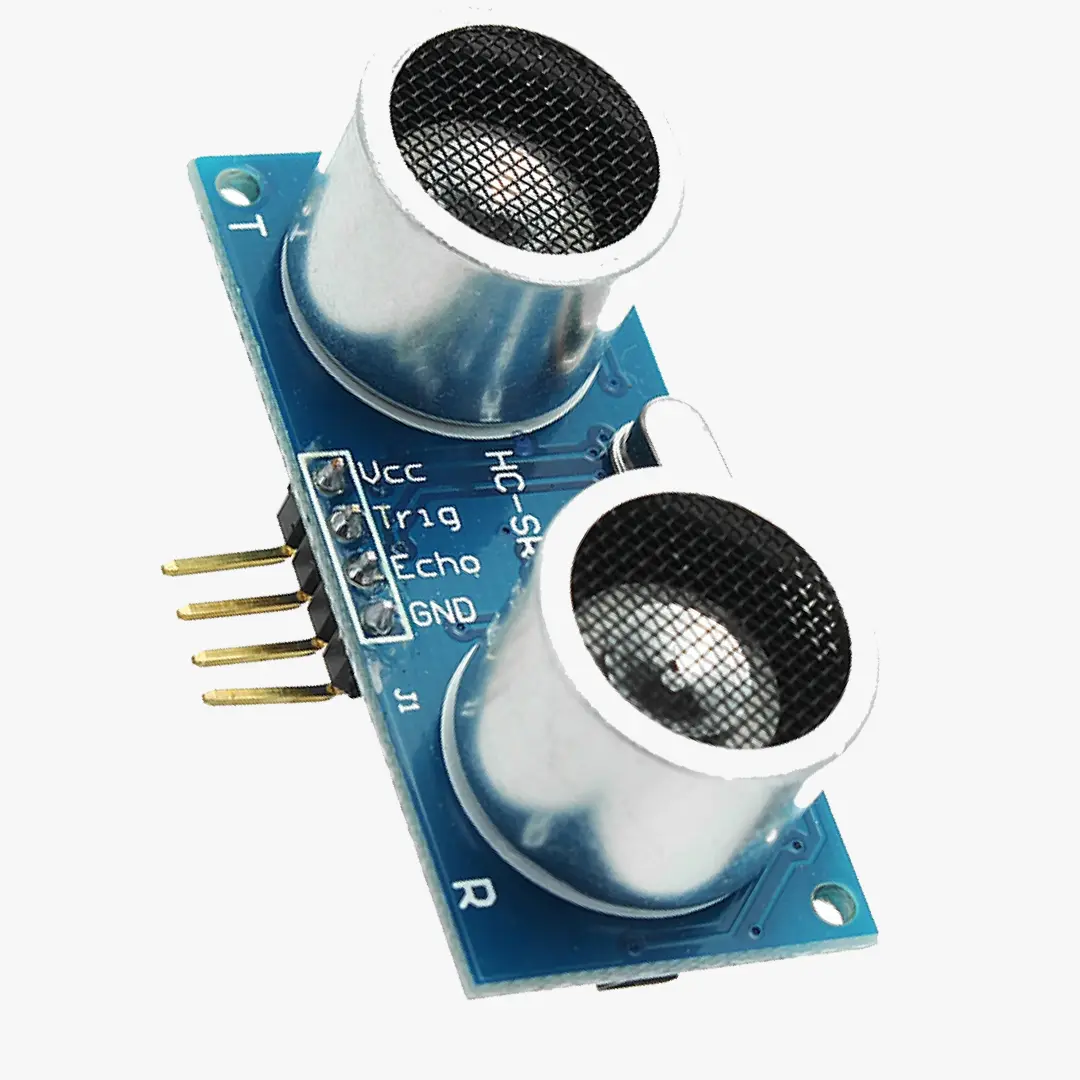

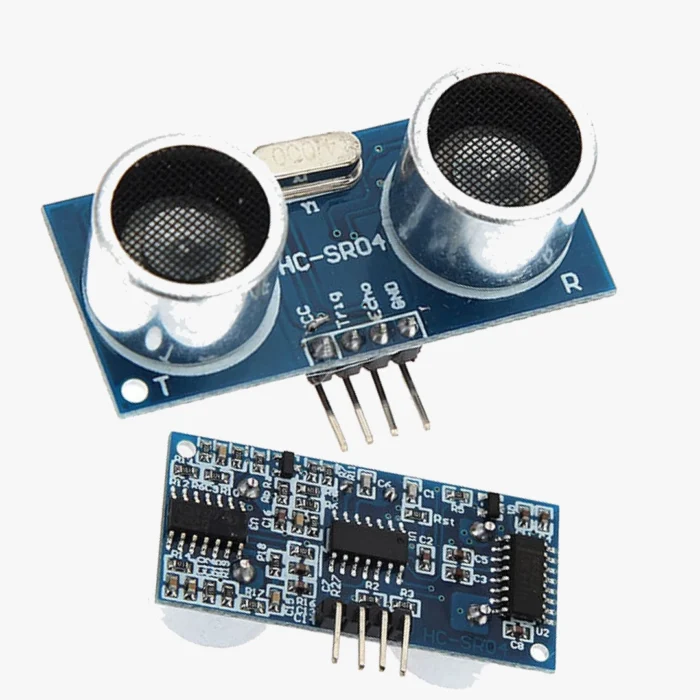

HC-SR04 Ultrasonic Distance Sensor Module – Accurate and Reliable Proximity Measurement
Original price was: ₹299.00.₹69.00Current price is: ₹69.00.
Description
Specifications
| Specification | Details |
|---|---|
| Operating Voltage | 5V DC |
| Operating Current | <15 mA |
| Ultrasonic Frequency | 40 kHz |
| Measuring Range | 2 cm to 400 cm |
| Accuracy | ±3 mm |
| Trigger Input Signal | 10 µs TTL pulse |
| Echo Output Signal | TTL pulse proportional to the distance |
| Dimensions | 45 x 20 x 15 mm |
Features
- It is a non-contact distance measurement that provides fast response time.
- It has Low power consumption which is ideal for a battery-operated sensor.
- It has only a four-pin interface like VCC, GND, Tri,g, and Echo.
- Very Compatible with a wide variety of different microcontrollers.
- Ability to provide dependable and constant readings in a variety of fields.
Applications
- Endeavor to perfection in robot and drone obstacle-avoiding structures.
- Range finding in automation and IoT project-level detection in containers and tanks.
- Detection of movement and security systems.
- Assistance for parking monitoring systems in vehicles.
