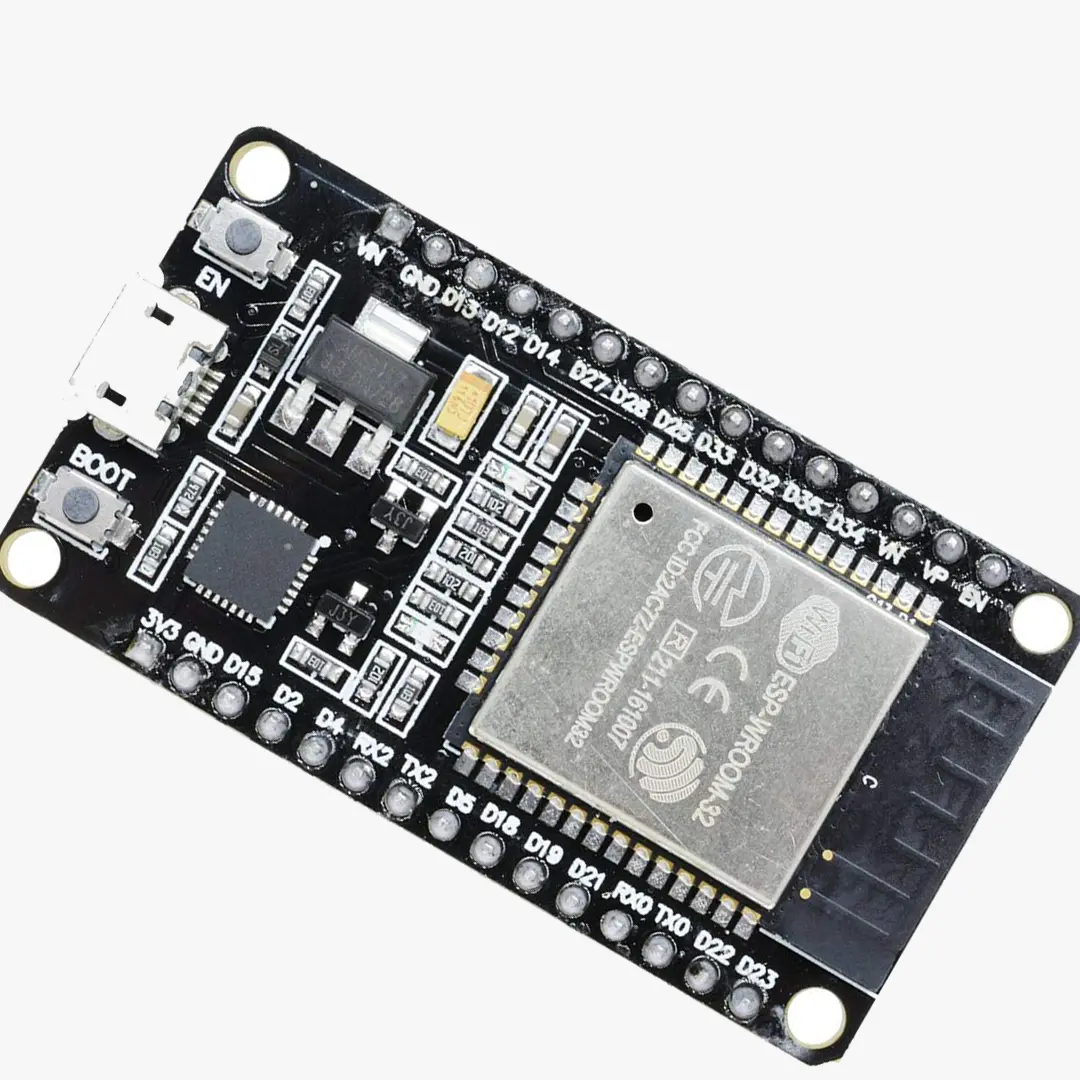

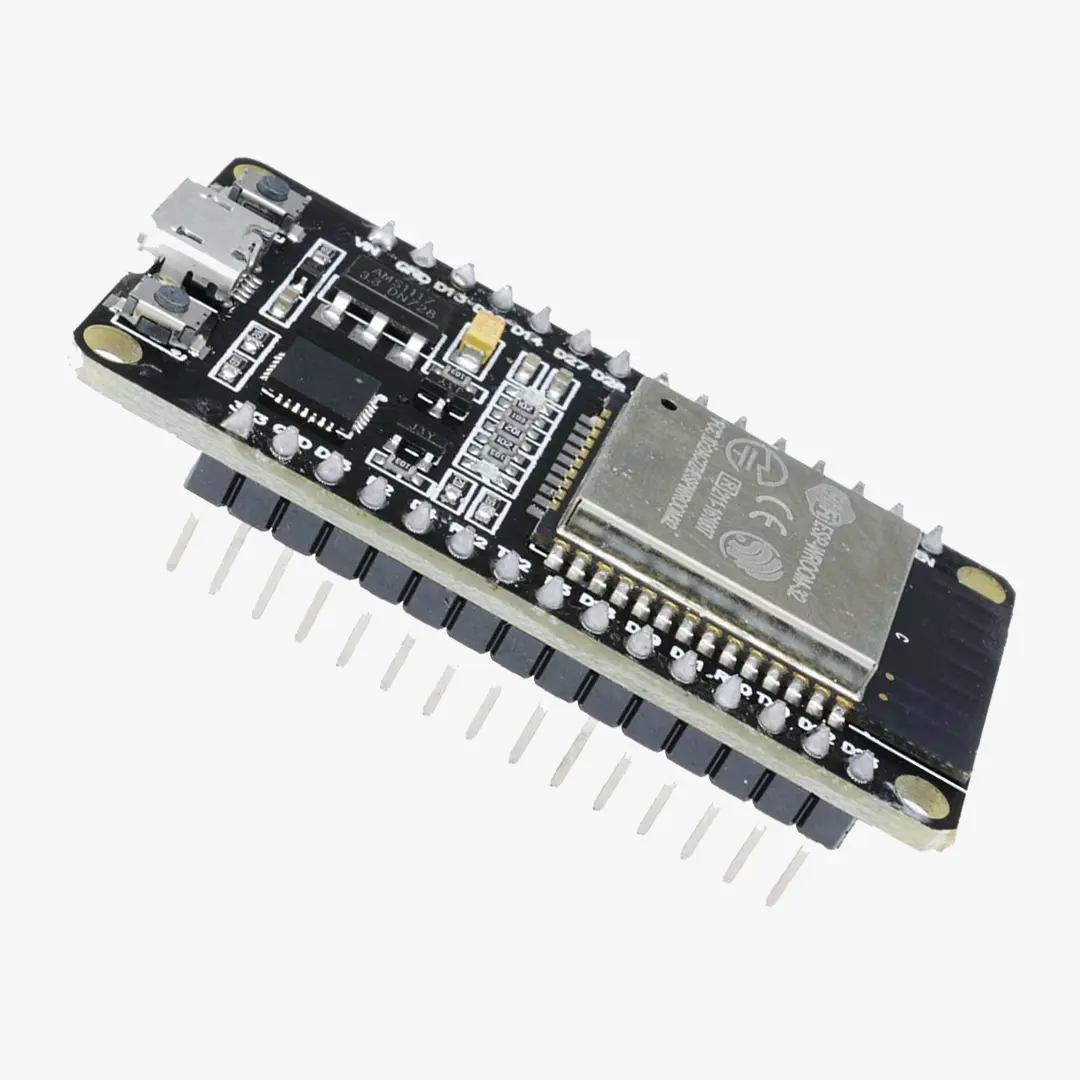

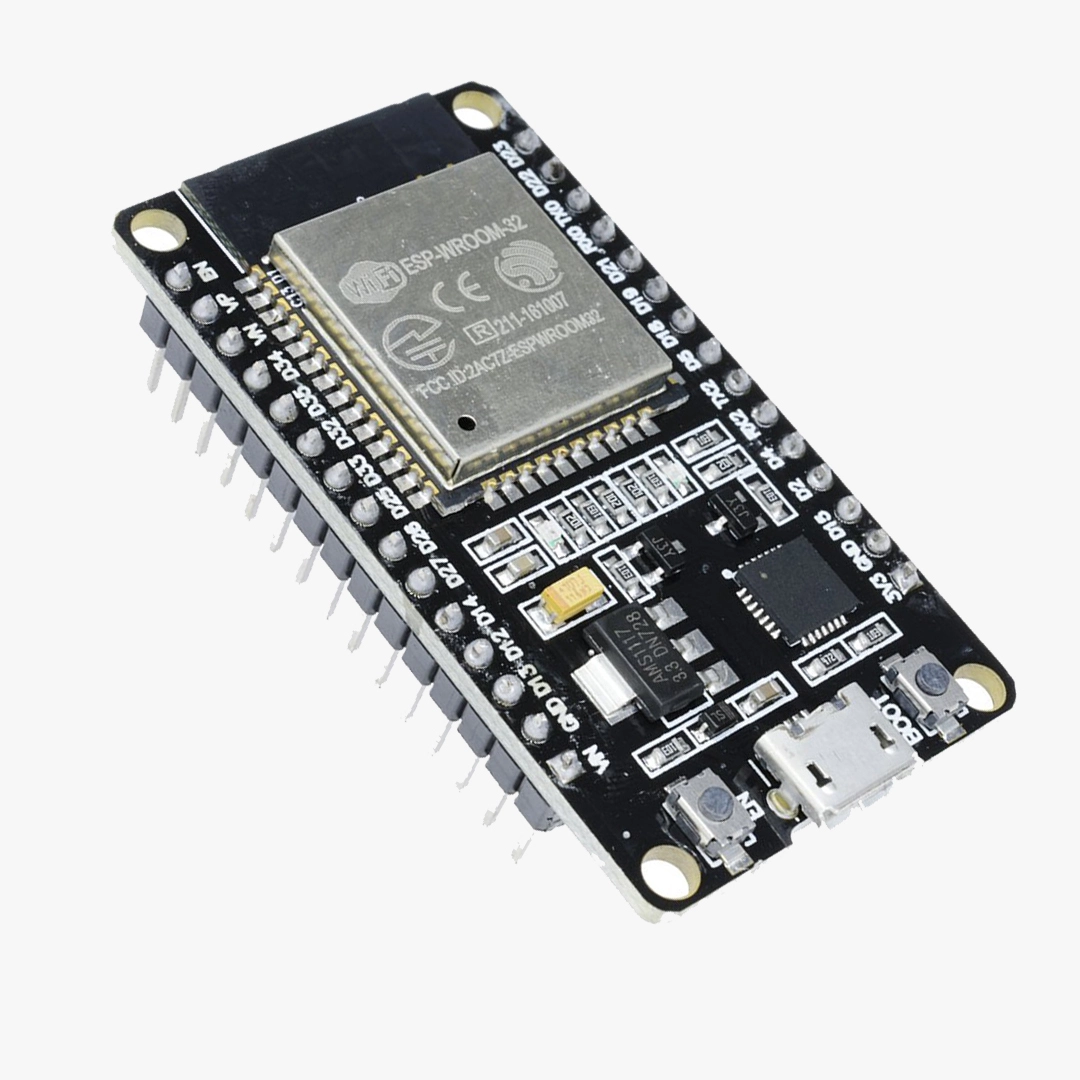

Name: ESP32 Development Board – Wi-Fi &amp; Bluetooth Enabled Microcontroller for IoT and Embedded Projects
SKU: 16101
Availability: InStock

ESP32 Development Board – Wi-Fi & Bluetooth Enabled Microcontroller for IoT and Embedded Projects

Description

The ESP32 Development Board is a universal microcontroller featuring Wi-Fi and Bluetooth connectivity. That makes it ideal for the Internet of Things, and other similar applications in embedded systems. Its performance, very low power consumption, and supporting peripherals are pretty well balanced on the board, making it perfectly suitable for first-time users to experts as applications range from smart devices to wireless communications, and robotics.

Specifications

Specification	Details
Microcontroller	Dual-core Tensilica Xtensa LX6
Operating Frequency	160MHz to 240MHz
RAM	520 KB SRAM
Flash Storage	4MB (or more, depending on the model)
Wireless Communication	Wi-Fi: 802.11 b/g/n Bluetooth: BLE 4.2 and Bluetooth Classic
GPIO Pins	30-38 (varies by model)
ADC Channels	18 (12-bit resolution)
DAC Channels	2 (8-bit resolution)
PWM Channels	16
SPI/I2C/UART	Multiple interfaces supported
Operating Voltage	3.3V
Input Voltage	5V via USB or external power supply
Power Consumption	Low power modes supported for energy-efficient applications
Dimensions	51mm x 25mm (approx.)

Features

Dual Core Processor: Very powerful for doing heavy multitasking or real-time applications
Wi-Fi and Bluetooth: Wireless communication for IoT projects and networking
Strong Peripheral Support: GPIO, ADC, DAC, SPI, I2C, UART, and PWM pins for interfacing.
Onboard Antenna: Specially designed antenna with improved connectivity.
Internal Flash Storage: There is enough memory to accommodate firmware as well as software application development.
Operating Modes: Target low-power consumption devices as a unit with deep sleep, standby, and low-power modes.
Compact Design: Fits into small spaces and is ideal for mobile and embedded equipment.

Package Includes

1 x ESP32 Development Board
1 x Micro-USB Cable (for power and programming)
1 x Set of Male Header Pins (optional)

Applications

IoT Applications: Design smart home appliances, weather stations, and data loggers.
Robotics: Operate robots with wireless communication and sensor controls.
Wireless Communication: Make Wi-Fi-based applications such as web servers or access point systems.
Wearables: Make energy-conserving wearables.
DIY Projects: Designed for people whose hobby is wireless communication and micro-controllers.
