- Displays 2x16 characters per line which suits the need for text-based interface displays.
- Arduino, ESP32, Raspberry Pi, and many other microcontrollers will work thanks to HD44780 Controller compatibility.
- The backlit screen's built in LED ensures visibility under many light conditions.
- Significantly increases mobility, making it ideal for portable projects.
- Easy plug and play with the 16 pin connector.
-62%
Raspberry Pi 4 Model B with 4 GB RAM Single-board Computer Model Designed for High-Level Performance Capabilities
Original price was: ₹5,999.00.₹3,639.00Current price is: ₹3,639.00.

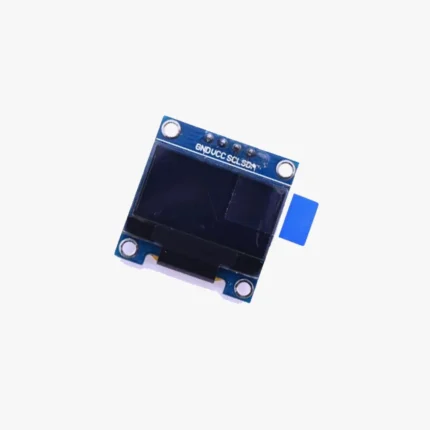

OLED Display-Super Graphic Display Embedded For Arduino and Other Projects Size 1.3 inch
Original price was: ₹599.00.₹220.00Current price is: ₹220.00.

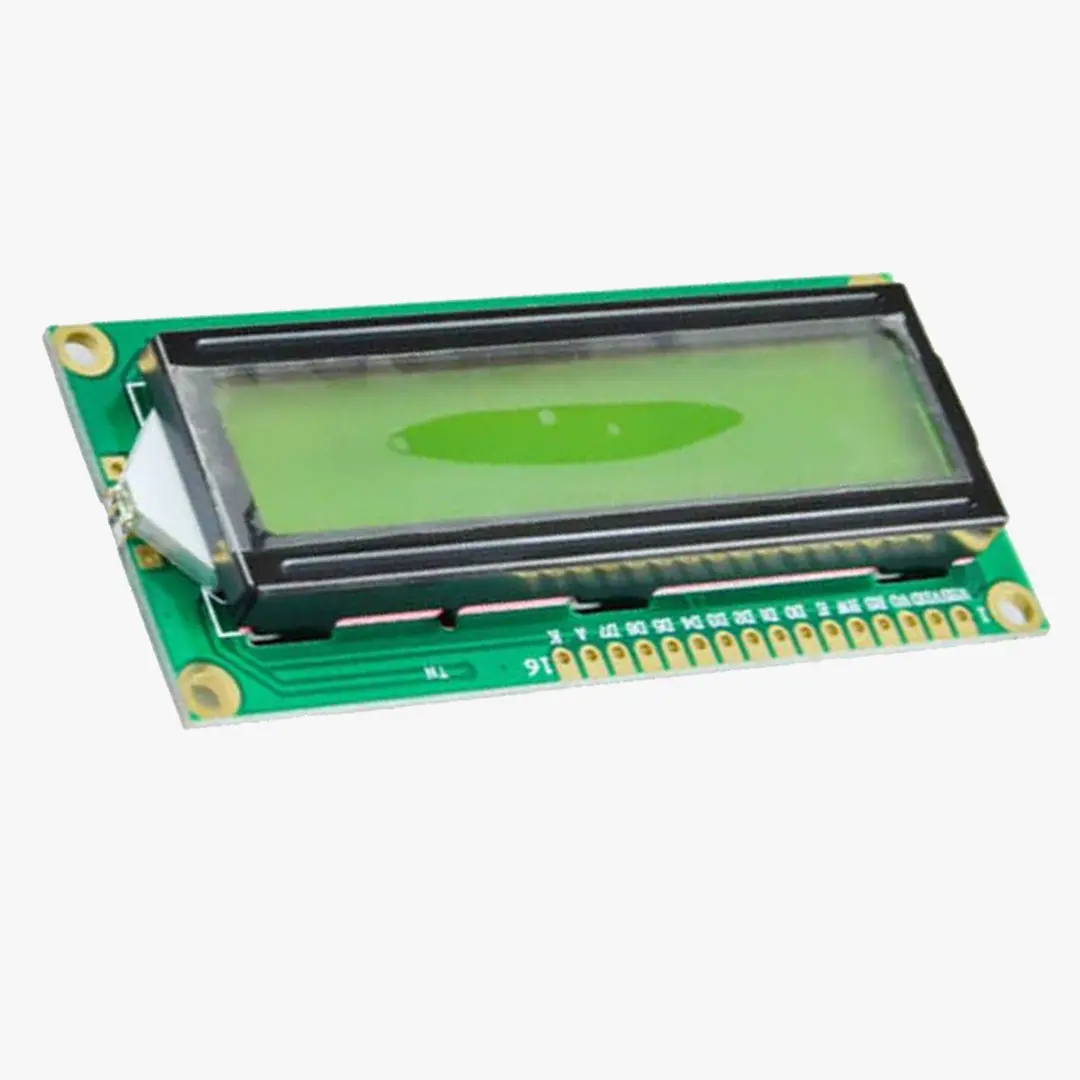

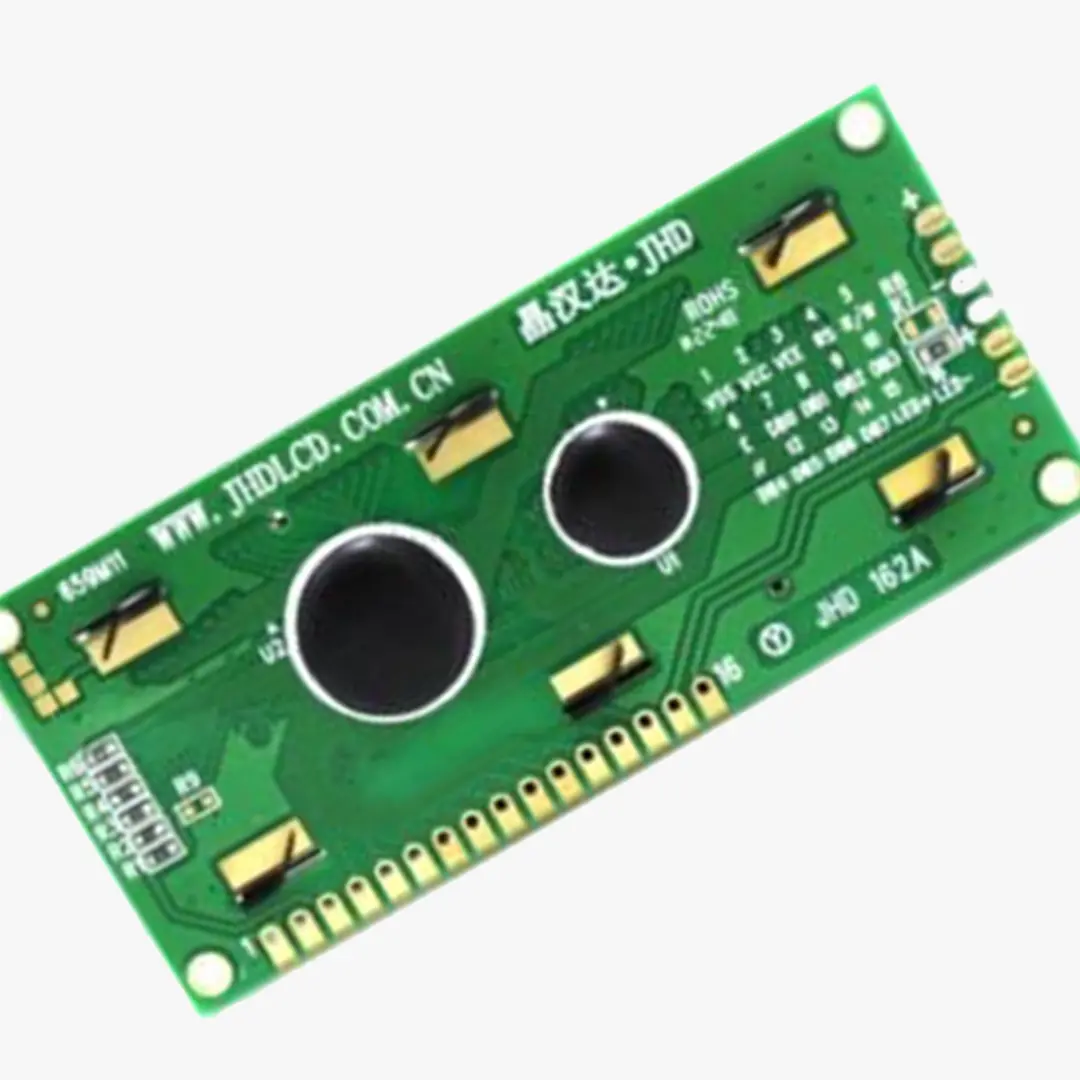

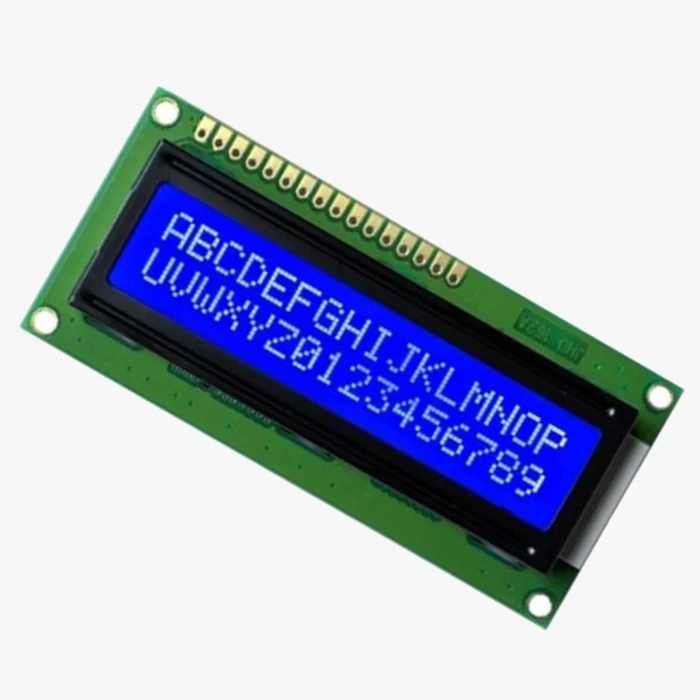

16×2 LCD Display Module – A Reliable Add-on for Embedded Projects’
Original price was: ₹499.00.₹189.00Current price is: ₹189.00.
Description
Specifications
| Feature | Details |
|---|---|
| Character Display | 16 characters x 2 lines |
| Used IC | HD44780 or equivalent |
| Used Connections | 4-bit or 8-bit parallel interface |
| Required Voltage | 4.7V to 5.3V DC |
| Type of Backlight | LED backlight (Yellow-Green or Blue) |
| Character Displayed | 5 x 8 dot matrix |
| Viewing Area | Approx. 64.5 x 16 mm |
Features
- Completely alphanumeric and custom characters displayable.
- V0 pin to allow adjustable contrast.
- LEDs provide firmer custom displays.
- Use with Arduino on the LiquidCrystal library allows easier programming.
- Ruggedness for long-lasting widely used displays.
- One (1) 16x2 LCD Display Module
- (Optional) One (1) Potentiometer for contrast adjustment
Applications
- Do it yourself (DIY) projects and building prototypes.
- Automation of homes and Internet of Things (IoT) devices.
- Automation systems and robotics.
- Teaching devices and education platforms.
- User Interfaces for embedded systems.
